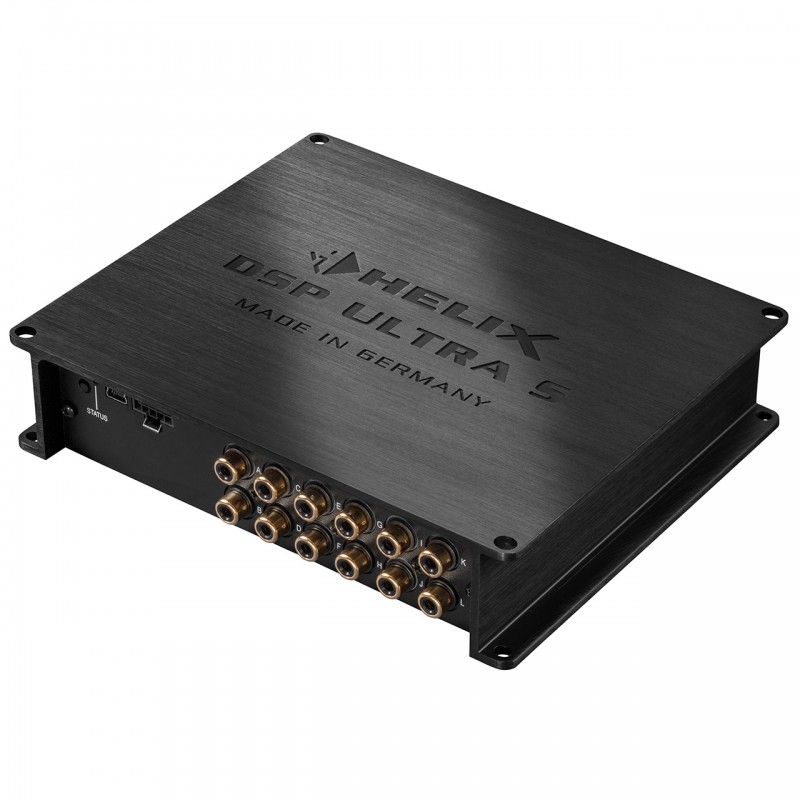

HELIX DSP ULTRA S

Kodas: HP51228

0,00 €

Su mokesčiais

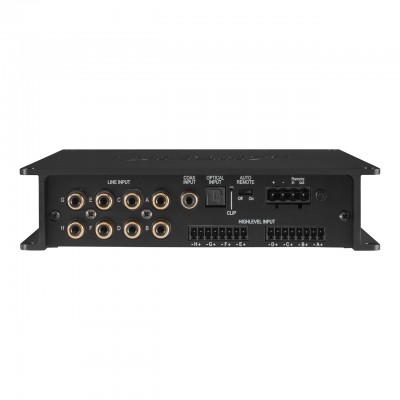

Inputs	8 x RCA / Cinch 8 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Coax SPDIF (12 - 192 kHz) 1 x Remote In
Input sensitivity	RCA / Cinch 1 - 8 Volts Highlevel 4 - 32 Volts

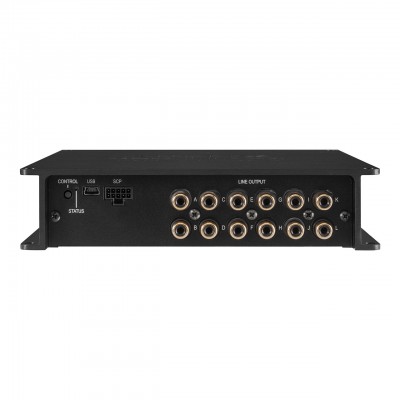

Outputs	12 x RCA / Cinch 1 x Remote Out
Output voltage	8 Volts
Frequency response	10 Hz - 44,000 Hz
DSP resolution	64 Bit
DSP power	2 x 295 MHz (2.4 billion MAC operations/second)
Sampling rate	96 kHz
DSP type	2 x Audio signal processor
Signal converters	A/D: Asahi Kasei 32 Bit D/A: Asahi Kasei 32 Bit
Signal-to-noise ratio digital input	117 dB (A-weighted)
Signal-to-noise ratio analog input	111 dB (A-weighted)
Total harmonic distortion (THD+N) digital input	< 0.0004 %
Total harmonic distortion (THD+N) analog input	< 0.0008 %
IM distortion (IMD) digital input	< 0.0015 %
IM distortion (IMD) analog input	< 0.003 %
Crosstalk	> 90 dB
Operating voltage	9.6 - 17 Volts (max. 5 sec. down to 6 Volts)
Power rating	DC 12 V ⎓ 1.1 A max.
Current draw	550 mA
Max. remote output current	500 mA
Operating temperature range	-40°C to +70°C
Additional features	HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch
Dimensions (H x W x D)	40 x 177 x 170 mm / 1.58 x 6.97 x 6.69“
