Technical data

.

Power RMS / max. 60 / 120 Watts

Frequency response 90 Hz - 25,000 Hz

Impedance 4 Ω

Efficiency 1 W / 1 m 89 dB

Cone material TW: Coated silk dome

M: -

W: Coated paper

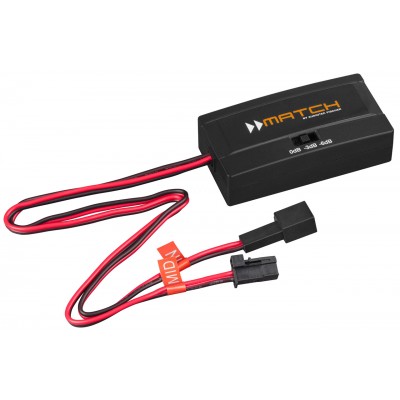

Crossover Separate, 6 dB slope with 3-stage tweeter level adjustment

Outer diameter TW: 43.1 mm / 1.70"

M: -

W: 126 mm / 4.96"

Installation diameter TW: 39 mm / 1.54"

M: -

W: 90.8 mm / 3.57"

Installation depth TW: 23.7 mm / 0.93"

M: -

W: 34.3 mm / 1.35"
