Technical data

.

Power RMS / max. 60 / 120 Watts

Frequency response 100 Hz - 25,000 Hz

Impedance 4 Ω

Efficiency 1 W / 1 m 90 dB

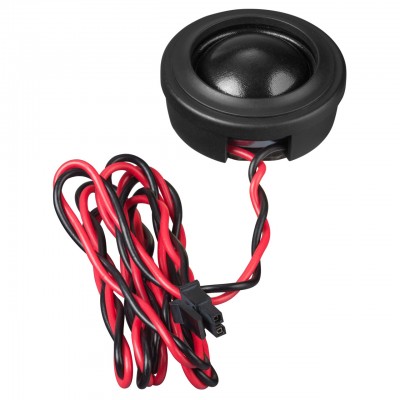

Cone material TW: Coated silk dome

M: -

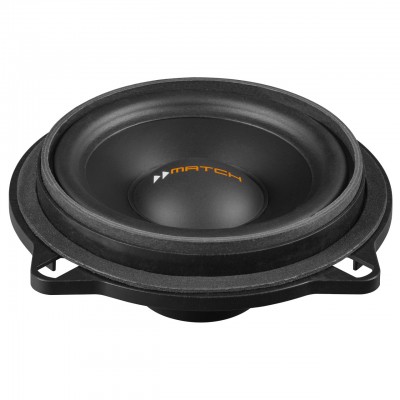

W: Coated paper

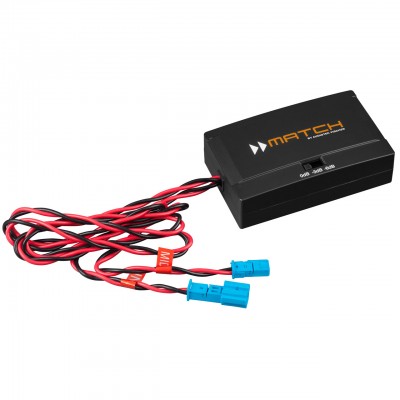

Crossover Separate, 12 dB / 12 dB slope with 3-stage tweeter leveladjustment

Outer diameter TW: 43.3 mm / 1.71"

M: -

W: 118 mm / 4.65"

Installation diameter TW: 41 mm / 1.61"

M: -

W: 84 mm / 3.31"

Installation depth TW: 9.6 mm / 0.38"

M: -

W: 31 mm / 1.22"
