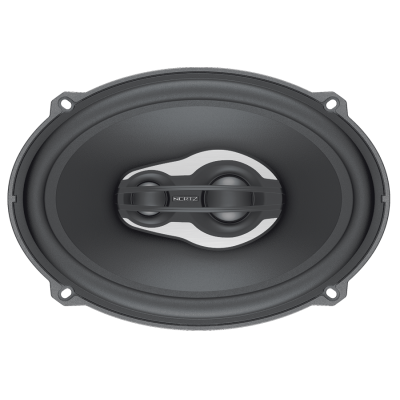

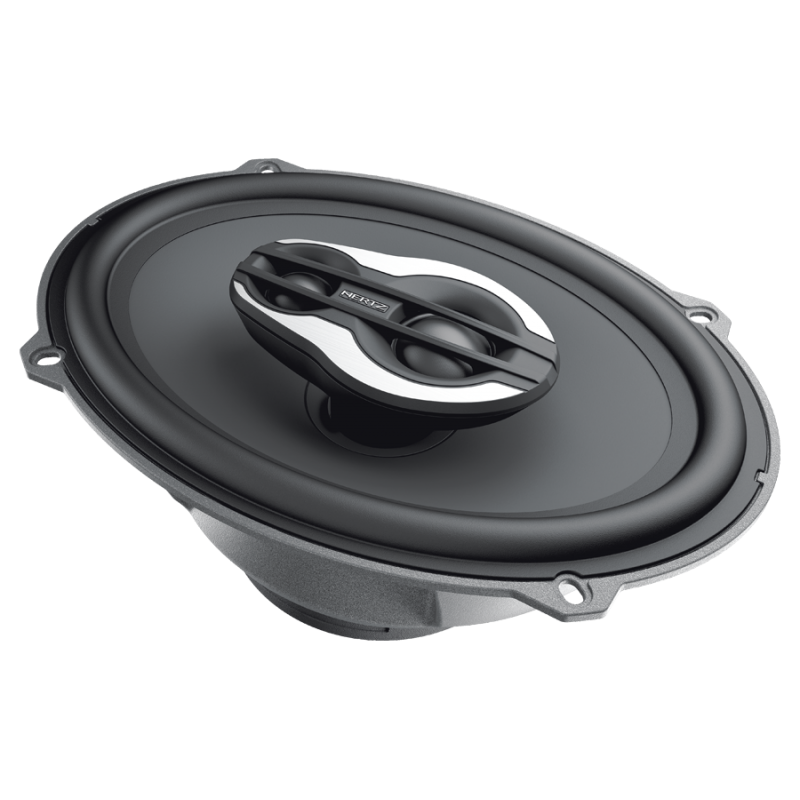

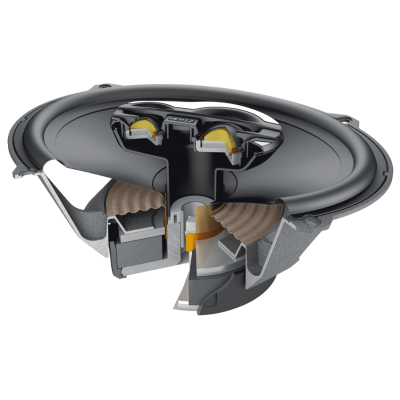

Component | Coaxials |
Size mm (in.) | (6 x 9) |
Power Handling - Continuous W | 130 |
Power Handling - Peak W | 260 |
Impedance Ohm | 4 |
Woofer Voice Coil Ø mm (in.) | 38 (1.5) |
Tweeter Voice Coil Ø mm (in.) | 28 (1.1) |
Frequency Response Hz | 30 ÷ 24k |
Woofer Magnet size D x d x h mm (in.) | 107 x 45 x 20 (4.21 x 1.77 x 0.79) |
Weight of one speaker kg (lb.) | 2.28 (5.03) |
Woofer Magnet | High density flux ferrite |
Tweeter Magnet | Neodymium |
Cone | Pressed-pulp cone with cotton fibers |
Dome | Tetolon |
Xmech mm (in.) | ±8 (0.31) |
D mm | 169 |
Re Ohm | 3 |
Fs Hz | 50 |
Le mH | 0,07 |
Vas I | 24 |
Mms g | 30 |
Cms mm/N | 0,34 |
BL T*m | 7,2 |
Qts | 0,43 |
Qes | 0,55 |
Qms | 2 |
Spl dB | 94 |
