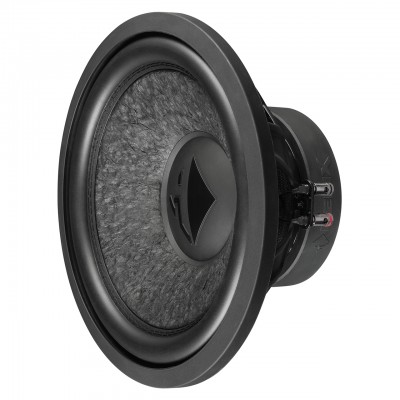

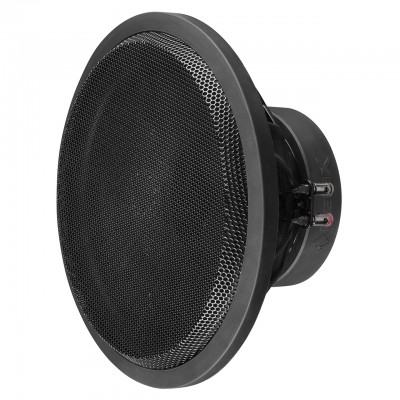

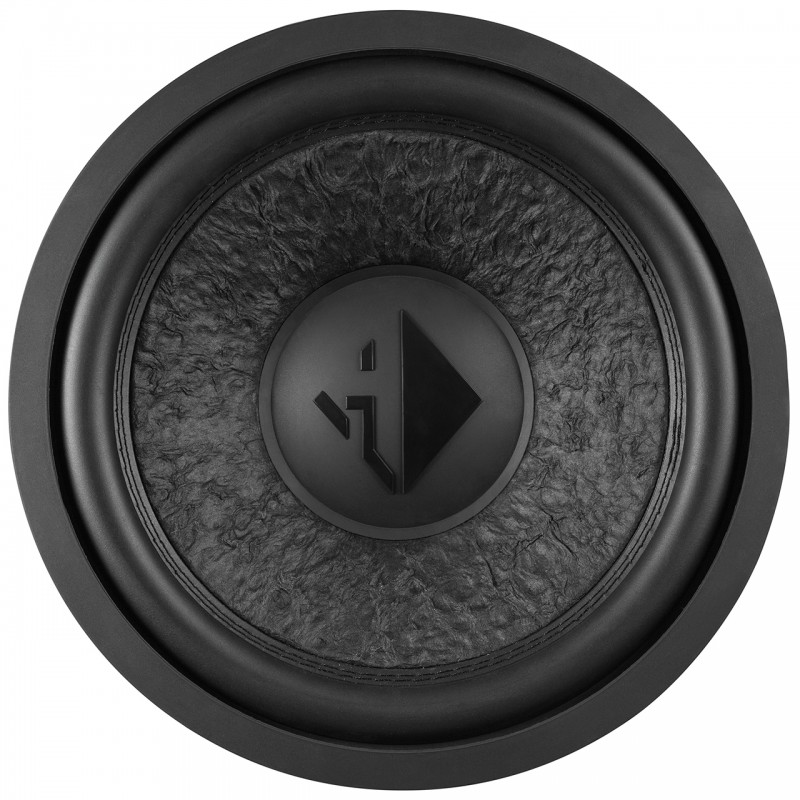

IK W12-DVC2 – 1 x 2 Ohms

Power handling RMS / max.

 P

300 / 600 Watt

Impedance

Z

1 x 2 Ω

DC resistance

Re

1 x 1.6 Ω

Resonance frequency

Fs

32 Hz

Mechanical Q factor

Qms

3.70

Electrical Q factor

Qes

0.46

Total Q factor

Qts

0.41

Compliance

Cms

179 μm/N

Equivalent air volume

Vas

66 L

Force factor

B*I

13.7 Tm

Sensitivity

SPL

93.0 dB @

2.83V / 1m
90.0 dB @

1W / 1m

Cone area

Sd

515 cm²

Moving mass

Mms

134 g

Cone material

Hand-scooped paper cone

Mechanical resistance

Rms

7.33 kg/s

Voice coil diameter

ø

50.8 mm

Voice coil winding height

24 mm

Max. linear excursion

Xmax

+/- 8.0 mm

Outer diameter

ø

316 mm / 12.44"

Installation diameter

ø

286 mm / 11.26

Installation depth

144 mm / 5.67"

Recommended enclosure volumes

Sealed box

Net volume

22 L

Lower limiting frequency (-3dB)

40 Hz

Vented box

Net volume

30 L

Port diameter

ø

100 mm / 3.94"

Port area

78 cm²

Port length

28 cm / 9.84"

Port tuning frequency

Fb

39 Hz

Lower limiting frequency (-3dB)

39 Hz
