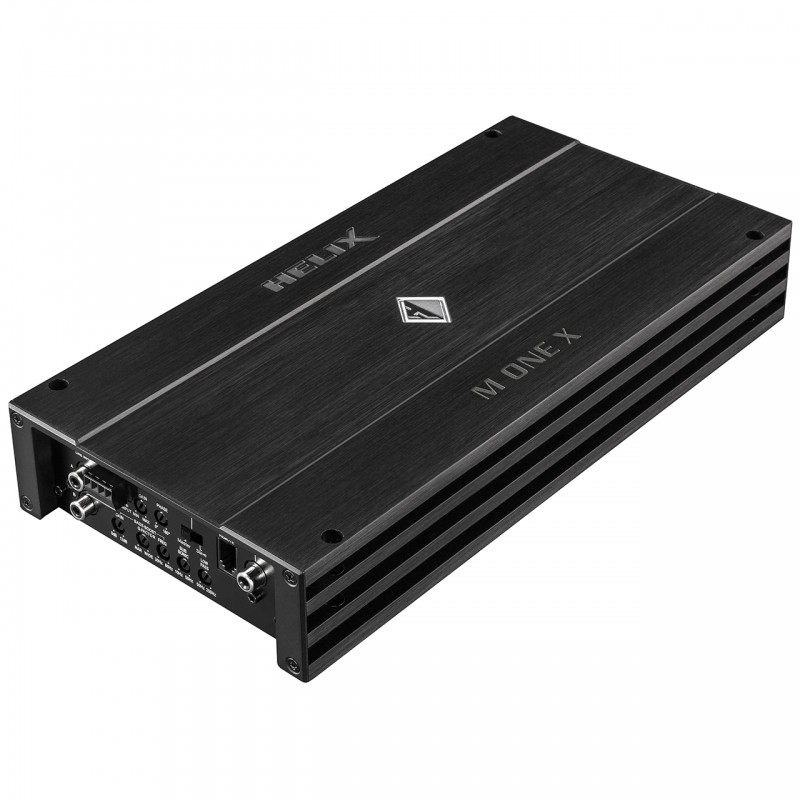

HELIX M ONE X

Kodas:

0,00 €
Su mokesčiais

1 X 700 WATTS / 2 OHM

  • Saugumo politika (redaguojama modulyje "Kliento patikinimas") Saugumo politika (redaguojama modulyje "Kliento patikinimas")
  • Pristatymo politika (redaguojama modulyje "Kliento patikinimas") Pristatymo politika (redaguojama modulyje "Kliento patikinimas")
  • Grąžinimo politika (redaguojama modulyje "Kliento patikinimas") Grąžinimo politika (redaguojama modulyje "Kliento patikinimas")

Technical data

Power RMS ≤ 1% THD+N
Normal operation
(One amplifier)
- @ 4 Ohms
1 x 400 Watts
- @ 2 Ohms
1 x 700 Watts
- @ 1 Ohm
1 x 1,030 Watts
- bridged @ 4 Ohms
-

- bridged @ 2 Ohms
-
Max. output power per channel*:
Up to 1,180 Watts RMS @ 1 Ohm
Amplifier technology
Class D
Inputs
2 x RCA / Cinch
2 x Highlevel speaker input
1 x Remote In
1 x Remote control input
Input sensitivity
RCA / Cinch 0.5 - 6 Volts
Highlevel 1.1 - 13 Volts
Input impedance RCA / Cinch
20 kOhms
Input impedance highlevel
9 - 33 Ohms
Outputs
1 x Speaker output
Output voltage RCA / Cinch
-
Signal converter for digital input
-
Frequency response
10 Hz - 250 Hz
Bass boost
0 - 12 dB / 30 - 80 Hz
Highpass
-
Lowpass
50 Hz - 250 Hz adjustable
Bandpass
10 Hz - 250 Hz adjustable
Subsonic
10 Hz - 50 Hz adjustable
Phase
0 - 180° adjustable
Slope high- / lowpass
-
Slope subsonic / lowpass
12 / 24 dB/Oct.
Signal-to-noise ratio digital input
-
Signal-to-noise ratio analog input
95 dB (A-weighted)
Distortion (THD)
0.20 %
Damping factor
150
Operating voltage
10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current
800 mA
Operating temperature range
-40° C to +70° C
Fuse
3 x 40 A Maxi-fuse (APX)
Power rating
DC 12 V ⎓ 106 A max.
Additional features
Active, adjustable crossover, bass boost, phase shift,
Start-Stop capability,
highlevel input with automatic turn on function and
Advanced Diagnostics Error Protection (ADEP),
bass volume cable remote control
Dimensions (H x W x D)
50 x 320 x 154 mm /
2.00 x 12.60 x 6.06”
