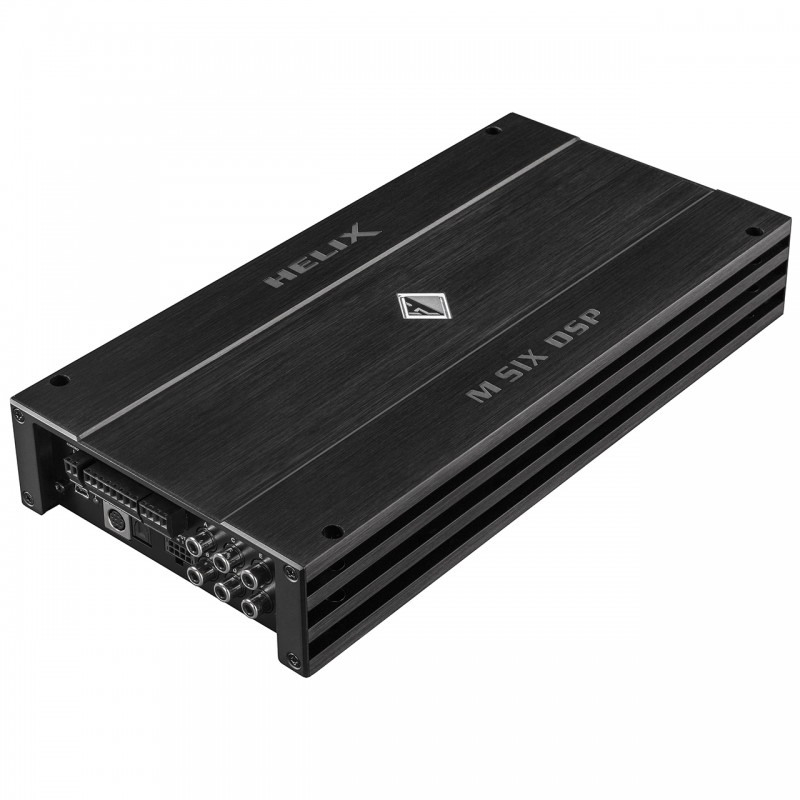

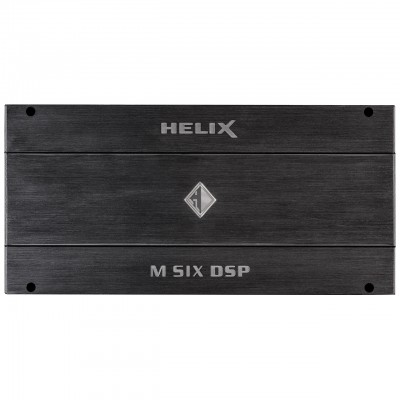

HELIX M SIX DSP

Kodas:

0,00 €

Su mokesčiais

Power RMS ≤ 1% THD+N
- @ 4 Ohms	6 x 100 Watts
- @ 2 Ohms	6 x 100 Watts
- @ 1 Ohm	-
- bridged @ 4 Ohms	3 x 200 Watts
- bridged @ 2 Ohms	-
Max. output power per channel*	Up to 130 Watts RMS @ 4 / 2 Ohms
Amplifier technology	Class D

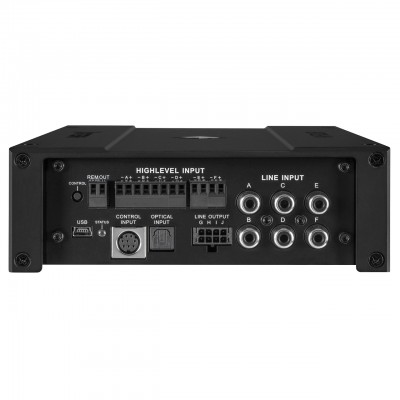

Inputs	6 x RCA / Cinch 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote In
Input sensitivity	RCA / Cinch 1 - 4 Volts Highlevel 5 - 20 Volts
Input impedance RCA / Cinch	22 kOhms
Input impedance highlevel	9 - 33 Ohms or 20 kOhms

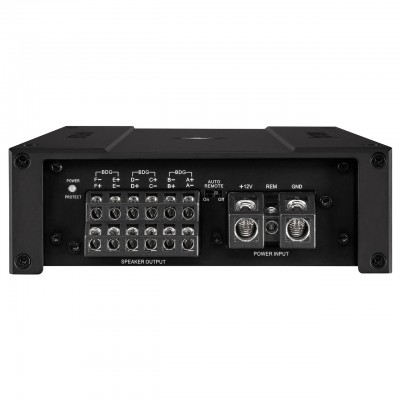

Outputs	6 x Speaker output 4 x RCA / Cinch 2 x Remote Out
Output voltage RCA / Cinch	6 Volts
Frequency response	20 Hz - 22,000 Hz
DSP resolution	64 Bit
DSP power	295 MHz (1.2 billion MAC operations/second)
Sampling rate	48 kHz
DSP type	Audio signal processor
Signal-to-noise ratio digital input	105 / 108 dB Speaker / Line Output (A-weighted)
Signal-to-noise ration analog input	102 / 105 dB Speaker / Line Output (A-weighted)
Distortion (THD)	< 0.03 / 0.005 % Speaker / Line Output
Damping factor	100
Operating voltage	10.5 - 16 Volts (max. 5 sec.down to 6 Volts)
Idle current	1950 mA
Max. remote output current	500 mA
Operating temperature range	-40° C to +70° C
Fuse	2 x 35 A Maxi-fuse (APX)
Power rating	DC 12 V ⎓ 80 A max.
Additional features	ADEP.3 circuit, Auto Remote switch, 32 Bit CoProcessor, Control Input
Dimensions (H x W x D)	50 x 320 x 154 mm / 2.00 x 12.60 x 6.06”
