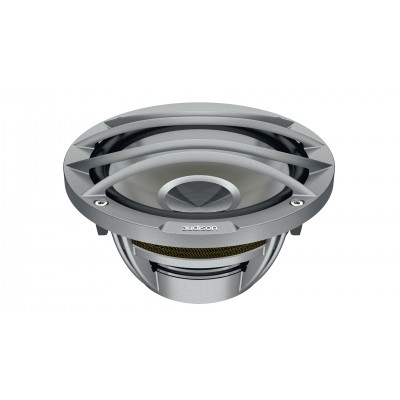

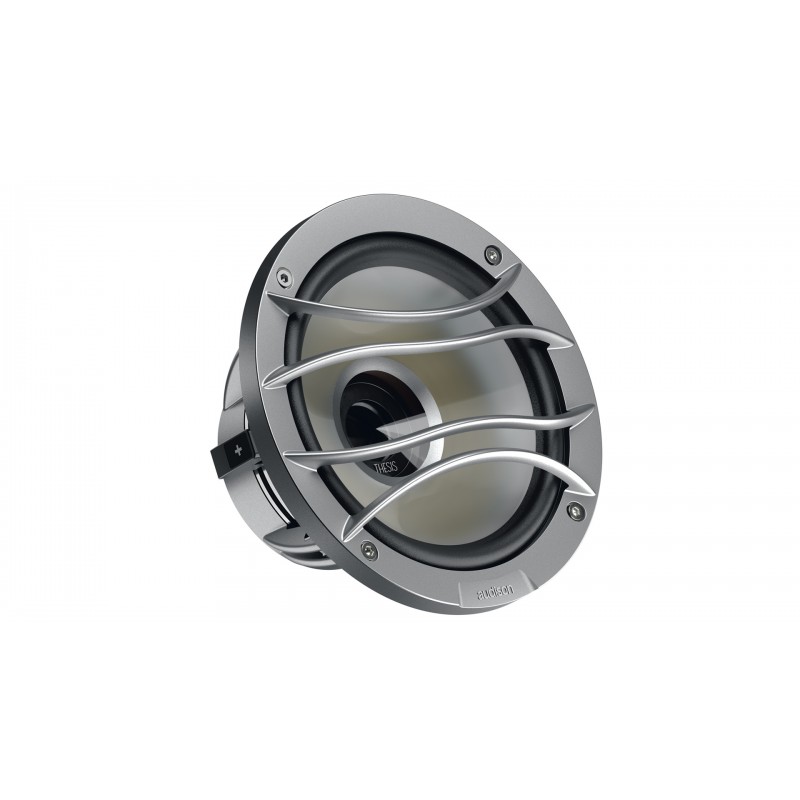

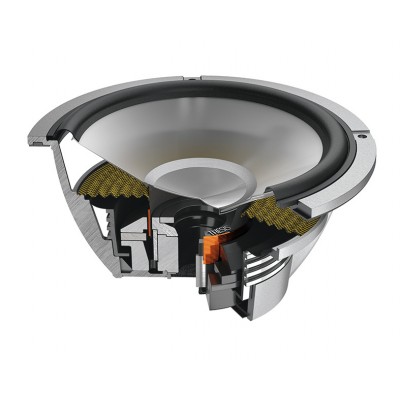

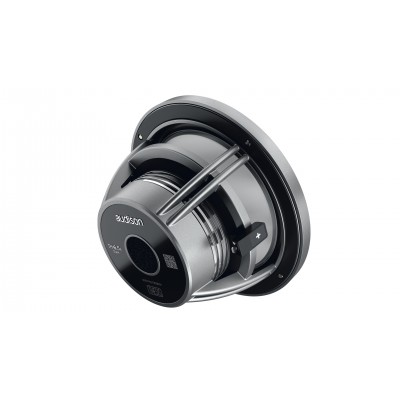

AUDISON TH 6.5 II sax

Technical Specs  :

---------------------------------

. Nominal diameter 165 mm

. Impedance 4 Ohm

. Power Handling - Peak 300 W

. Power Handling - Continuous 150 W

. Sensitivity 87 dB

. Frequency Response 40 ÷ 4500 Hz

. Voice Coil Ø 50 mm

. Magnet Material NEODYMIUM

. Magnet size D x d x h 80 x 54 x 4,5 mm (in.)

. Voice Coil Material CCAP - COPPER CLAD ALLUMINIUM RIBBON

. Cone Material TPX®

. Xmax 5.4 mm

. Re 3.8 Ohm

. Fs 55 Hz

. Le 0.43 Hz

. Vas 8.6 l

. Mms 24.2 g

. Cms 0.35 mm /N

. BL 8.2 T•m

. Qts 0.43

. Qes 0,47

. Qms 5.3

. Weight 1.25 kg
