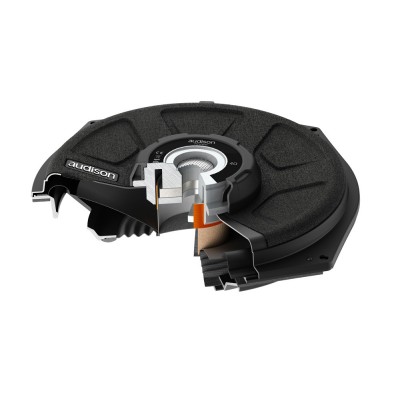

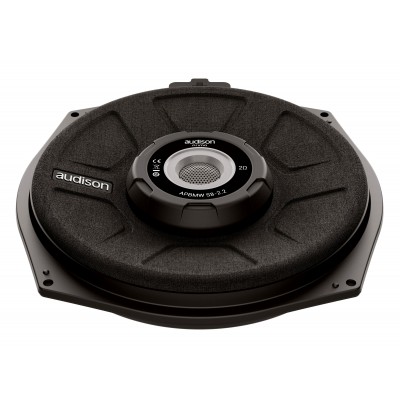

AUDISON APBMW S8-2.2

Technical Specs   :

---------------------------------------

. Nominal diameter 200 mm

. Impedance 2 Ohm

. Power Handling - Peak 300 W

. Power Handling - Continuous 150 W

. Sensitivity 91 dB

. Frequency Response 40-500 Hz

. Voice Coil Ø 50 mm

. Chassis Material PLASTIC

. Magnet Material NEODYMIUM

. Magnet size D x d x h 48x18x7 mm mm (in.)

. Voice Coil Material COPPER

. Former Material ALUMINUUM

. Cone Material PRESSED PAPER CONE

. Surround Material RUBBER

. Xmax 7 mm

. Xmech 10 mm

. Driver Displacement Volume 1.2 l

. Electric-acoustic Specs

. Re 2.2 Ohm

. Fs 40 Hz

. Le 0.3 Hz

. Vas 22.3 l

. Mms 42 g

. Cms 0.4 mm/N

. BL 5.6 T•m

. Qts 0.5

. Qes 0,67

. Qms 2.1

. Reference Efficiency 0.18

. General

. Weight 1.21 kg
