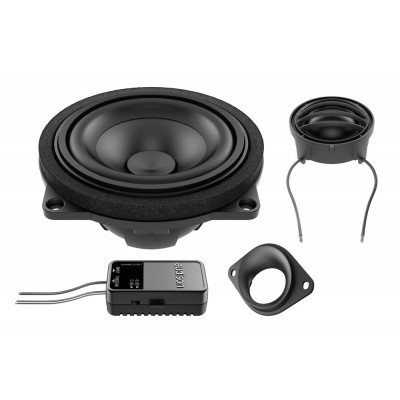

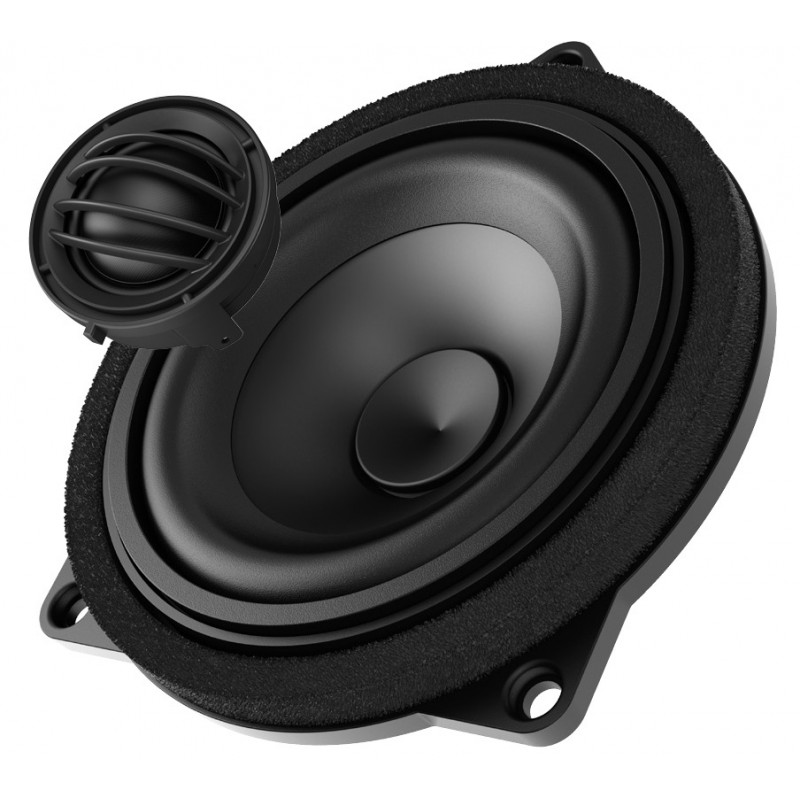

AUDISON APBMW K4E

Technical Specs  :

------------------------------

. Woofer Size 100 mm

. Impedance 4 Ohm

. Power Handling - Peak 100 W

. Power Handling - Continuous 50 W

. Frequency Response 90 ÷ 23k

. Voice Coil Diameter 25 mm

. Magnet Size 50 x 29 x 3

. Crossover Level Adjustment -3; 0

. Technical Specs HF

. Tweeter Size 29 mm

. Voice Coil Diameter 25 mm

. Electric-acoustic Specs LF

. Re 3.3 Ohm

. Fs 90 Hz

. Mms 6.3 g

. Cms 0.5

. BL 4.8

. Qms 8.2

. Qts 0.48

. Vas 1.8 l

. Le 0.32

. Spl 88 dB

. Xmax 0.5 mm

. General

. Weight Woofer 0.46 kg

. Weight Tweeter 0.06 kg
