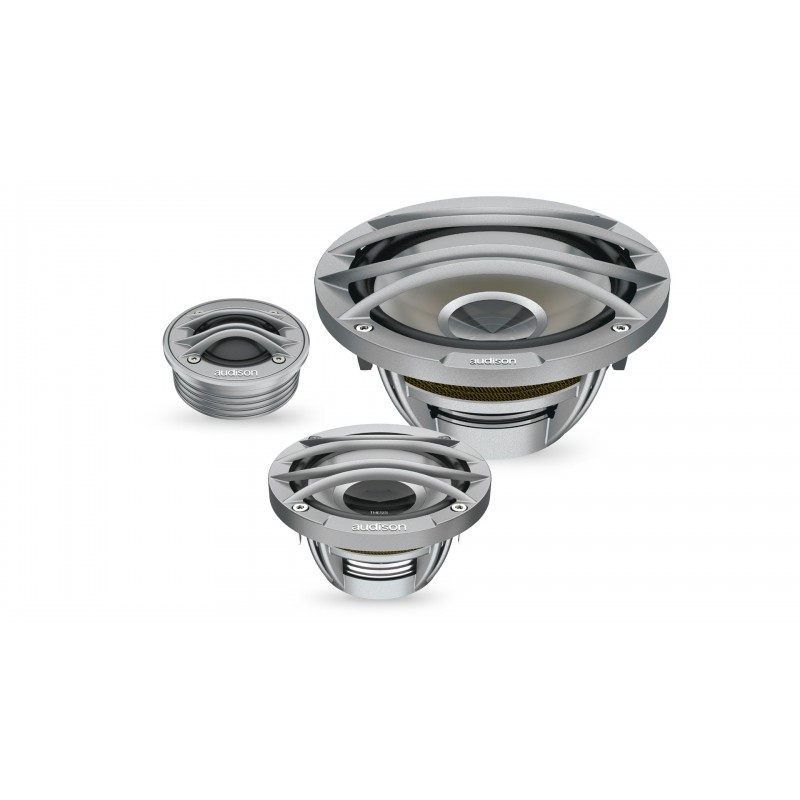

AUDISON TH K3 II A ORCHESTRA

Technical Specs  :

--------------------------------------------

. Woofer Size 165 mm

. Impedance 4 Ohm

. Power Handling - Peak 350 W

. Power Handling - Continuous 200 W

. Frequency Response 40 ÷ 26k

. Voice Coil Diameter 50 mm

. Magnet Material SPECIAL NEODYMIUM N38H

. Cone Material TPX®

. Technical Specs HF

. Tweeter Size 38 mm

. Voice Coil Diameter 34 mm

. Dome Material

. Technical Specs MF

. Midrange Size 70 mm

. Voice Coil Diameter 30.5 mm

. Magnet Material SPECIAL NEODYMIUM N38H

. Cone Material TPX

. Re 3.8 Ohm

. Fs 55 Hz

. Mms 24.2 g

. Cms 0.35

. Qms 5.3

. Qes 0.47

. Qts 0.43

. Vas 8.6 l

. Le 0.43

. Spl 87 dB

. Weight Woofer 1.25 kg

. Weight Tweeter 0.25 kg

. Weight Crossover 0.355 kg
