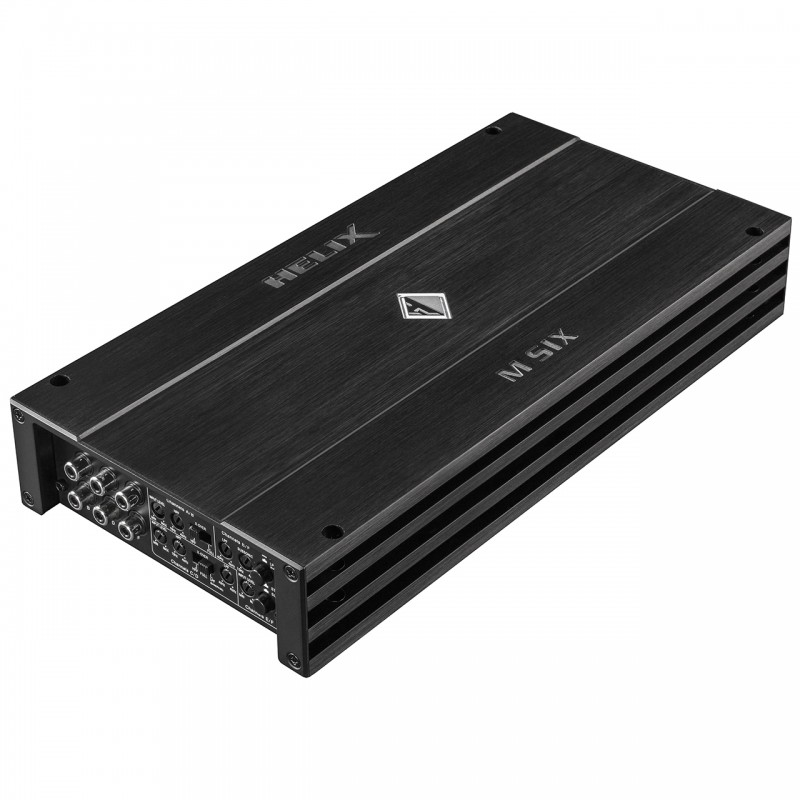

HELIX M SIX

Output power RMS  ≤ 1% THD+N

- @ 4 Ohms

6 x 100 Watts

- @ 2 Ohms

6 x 100 Watts

- @ 1 Ohm

-

- bridged @ 4 Ohms

3 x 200 Watts

- bridged @ 2 Ohms

-

Max. output power per channel*

Up to 130 Watts RMS @ 4 / 2 Ohms

Amplifier technology

Class D

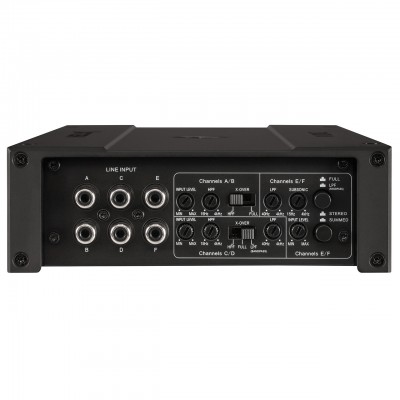

Inputs

6 x RCA / Cinch

1 x Remote In

Input sensitivity

RCA / Cinch 0.5 - 6 Volts

Input impedance RCA / Cinch

20 kOhms

Input impedance highlevel

-

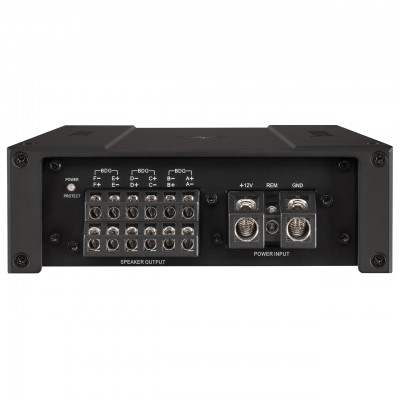

Outputs

6 x Speaker output

Output voltage RCA / Cinch

-

Signal converter for digital input

-

Frequency response

10 Hz - 30,000 Hz

Bass boost

-

Highpass

15 Hz - 4,000 Hz adjustable

Lowpass

40 Hz - 4,000 Hz adjustable

Bandpass

15 Hz - 4,000 Hz adjustable

Subsonic / HPF

15 Hz - 4,000 Hz adjustable

Phase

-

Slope high- / lowpass

12 dB/Oct.

Slope subsonic / lowpass

-

Signal-to-noise ratio digital input

-

Signal-to-noise ratio analog input

98 dB (A-weighted)

Distortion (THD)

0.05 %

Damping factor

100

Operating voltage

10.5 - 16 Volts (max. 5 sec. down to 6 Volts)

Idle current

1,550 mA

Operating temperature range

-40° C to +70° C

Fuse

2 x 35 A Maxi-fuse (APX)

Power rating

DC 12 V ⎓ 80 A max.

Additional features

Active, adjustable crossover, subsonic input mode switch channel E / F, subsonic, Start-Stop capability

Dimensions (H x W x D)

50 x 320 x 154 mm /

2.00 x 12.60 x 6.06”
