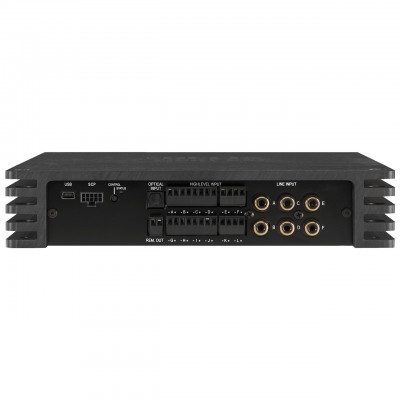

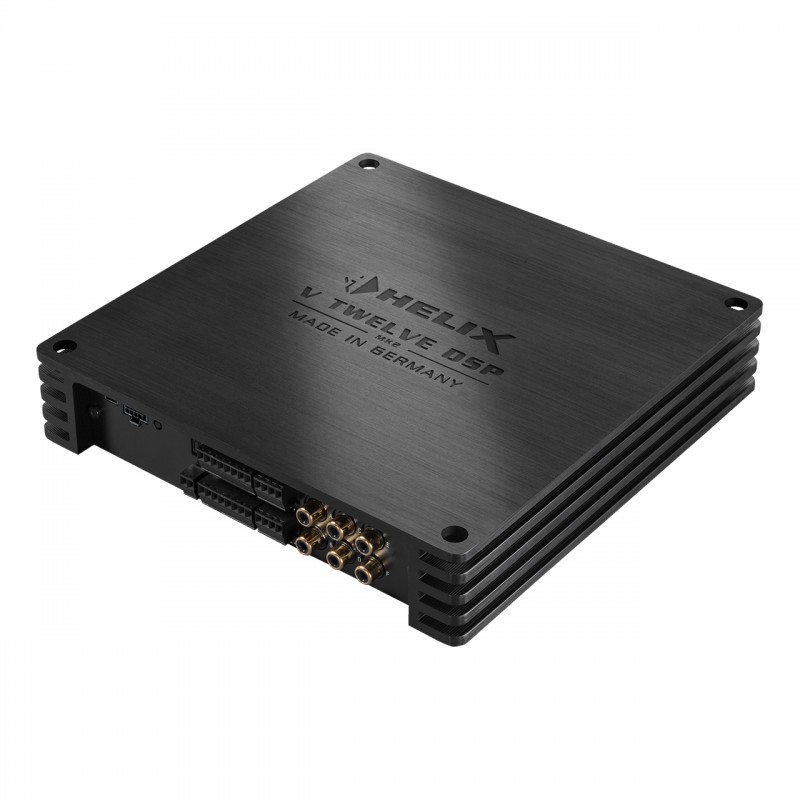

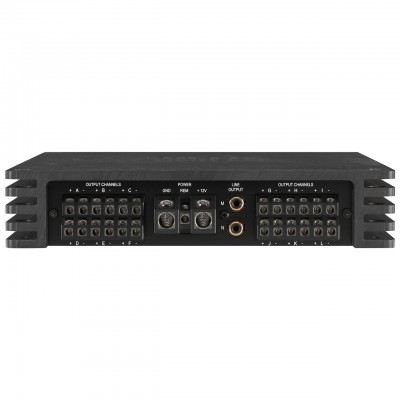

HELIX V TWELVE DSP MK2

Kodas:

0,00 €

Su mokesčiais

Power RMS ≤ 1% THD+N
- @ 4 Ohms	12 x 75 Watts
- @ 2 Ohms	12 x 120 Watts
- @ 1 Ohm	-
- bridged @ 4 Ohms	-
- bridged @ 2 Ohms	-
Max. output power per channel*	Up to 160 Watts RMS @ 2 Ohms
Amplifier technology	Pure Class GD
Inputs	6 x RCA / Cinch 12 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote In
Input sensitivity	RCA / Cinch: max. 4 V or max. 8 V Highlevel: max. 16 V or max. 32 V
Input impedance RCA / Cinch	12 kOhms
Input impedance highlevel	9 - 33 Ohms or 20 kOhms
Outputs	12 x Speaker output 2 x RCA / Cinch 2 x Remote Out
Output voltage RCA / Cinch	3 Volts
Frequency response	20 Hz - 22,000 Hz
DSP resolution	64 Bit
DSP power	295 MHz (1.2 billion MAC operations/second)
Sampling rate	48 kHz
DSP type	Audio signal processor
Signal converters	A/D: BurrBrown 24 Bit D/A: BurrBrown 24 Bit
Signal-to-noise ratio digital input	107 dB (A-weighted)
Signal-to-noise ration analog input	102 dB (A-weighted)
Distortion (THD)	< 0.015 %
Damping factor	> 70
Operating voltage	10.5 - 18 Volts (max. 5 sec.down to 6 Volts)
Power rating	DC 12 V ⎓ 80 A max.
Idle current	700 mA
Max. remote output current	500 mA
Operating temperature range	-40° C to +70° C
Fuse	2 x 30 A LP-Mini-fuse (APS)
Additional features	HEC slot, ADEP.3 circuit, Smart Control Port, Auto Remote switch, 32 Bit CoProcessor
Dimensions (H x W x D)	44 x 220 x 220 mm / 1.73 x 8.66 x 8.66“
